| Max Drilling Diameter | Ø25mm(1’’) |
| Motor Power | 750/900w |
| Chuck Capacity | 5~20mm |
| Spindle Travel | 85mm |
| Class Of Speed | 12 |
| Speed50/60Hz | 280~2380/340~2860 rpm |
| Spindle Taper | MT3 |
| Max distance from spindle axis to surface of column | 176mm |
| Max distance from spindle end to surface of table | 685mm |
| Max distance from spindle end to surface of base | 1175mm |
| Swing | 352mm |
| Table Size | 290×290mm |
| Base Size | 460×272mm |
| Column Diameter | Ø80mm |

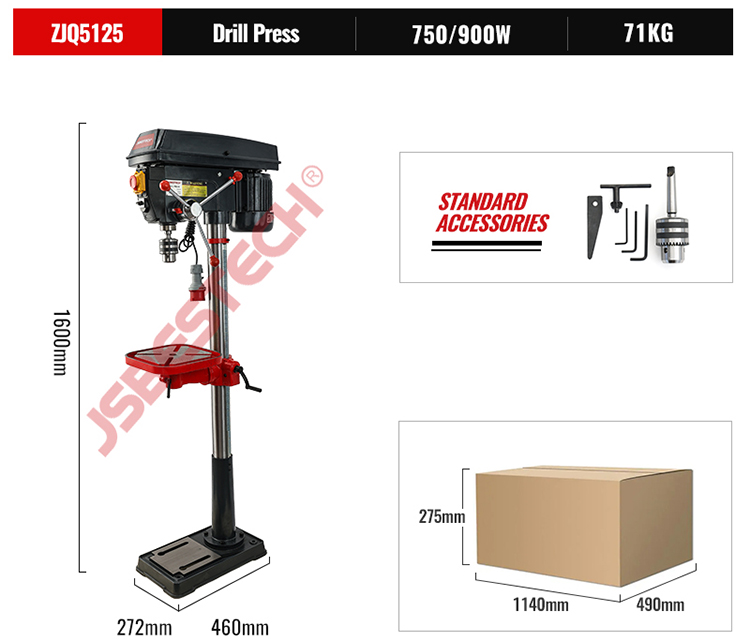

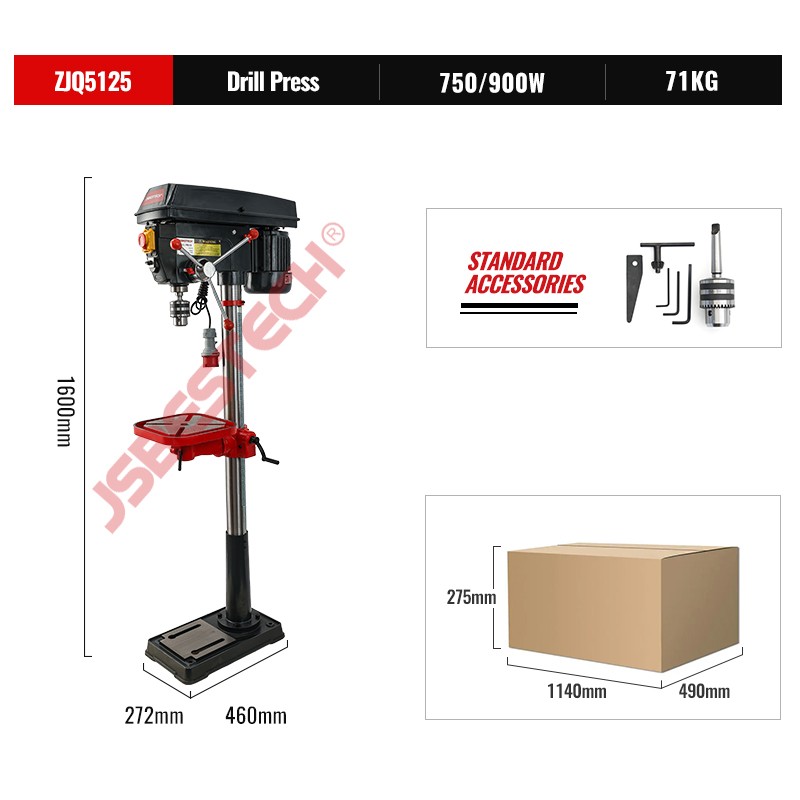

| Height | 1600mm |
| Net Weight/ Gross Weight | 71.0/75.0kg |
| Packing Size | 1140×490×275mm |
