| Max Drilling Diameter | Ø16mm(5/8’’) |
| Motor Power | 375/450/550w |
| Chuck Capacity | 3~16mm |
| Spindle Travel | 60mm |
| Class Of Speed | 5 |
| Speed50/60Hz | 620~2620/740~3140 rpm |
| Spindle Taper | B16 |
| Max distance from spindle axis to surface of column | 130mm |
| Max distance from spindle end to surface of table | 400mm |
| Max distance from spindle end to surface of base | 515mm |
| Swing | 260mm |
| Table Size | 190×190mm |
| Base Size | 340×210mm |
| Column Diameter | Ø58mm |

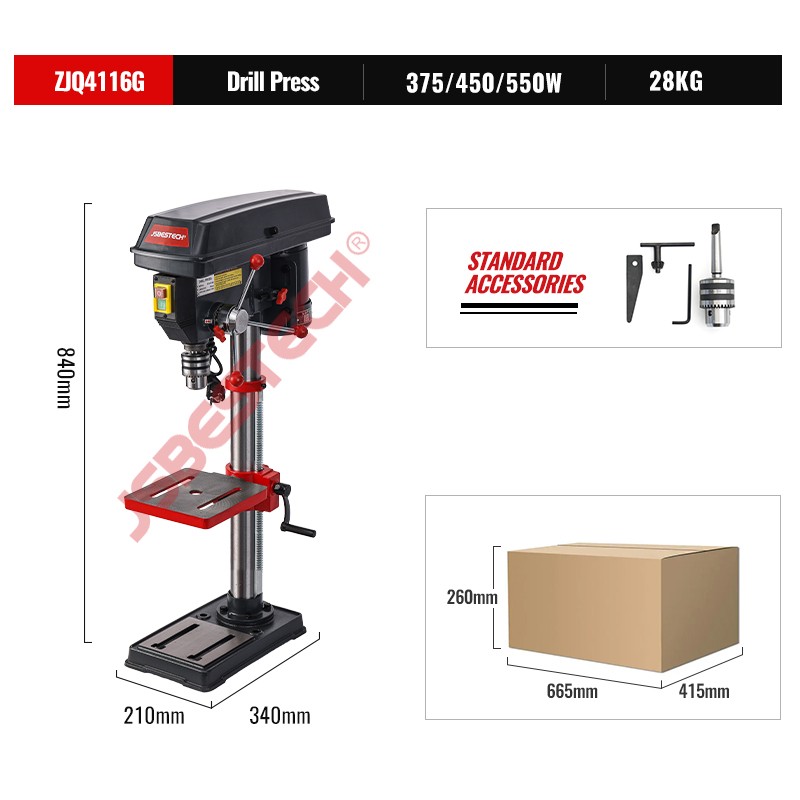

| Height | 840mm |
| Net Weight/ Gross Weight | 28/30kg |
| Packing Size | 665×415×260mm |
