| Max Drilling Diameter | Ø20mm(3/4’’) |
| Motor Power | 550/750w |
| Chuck Capacity | 5~20mm |
| Spindle Travel | 80mm |
| Class Of Speed | 16 |
| Speed50/60Hz | 180~2770/220~3320 rpm |
| Spindle Taper | MT2 |
| Max distance from spindle axis to surface of column | 162.5mm |
| Max distance from spindle end to surface of table | 725mm |
| Max distance from spindle end to surface of base | 1205mm |
| Swing | 325mm |

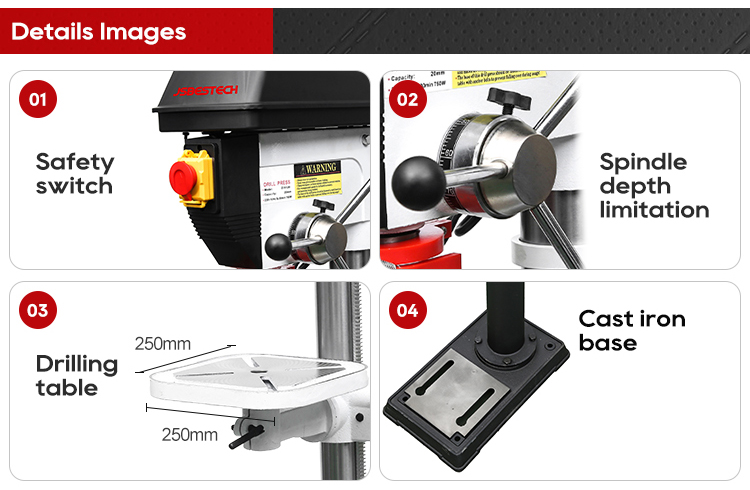

| Table Size | 250×250mm |
| Base Size | 460×272mm |
| Column Diameter | Ø72mm |

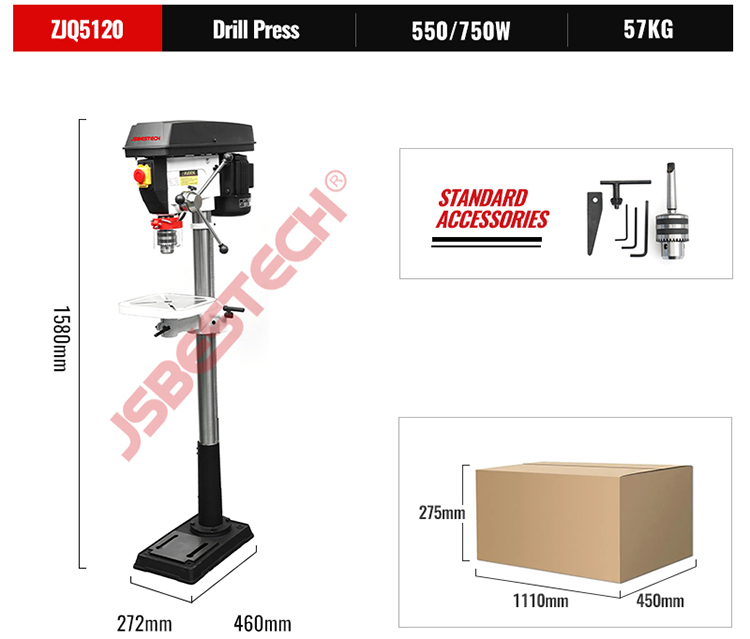

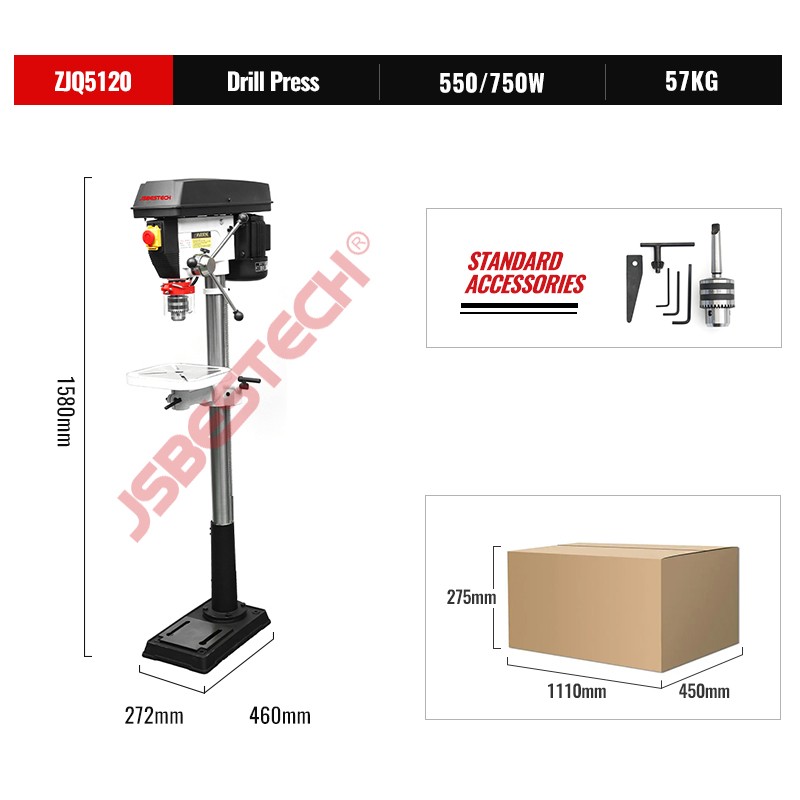

| Height | 1580mm |
| Net Weight/ Gross Weight | 57.0/60.0kg |
| Packing Size | 1110×450×275mm |
