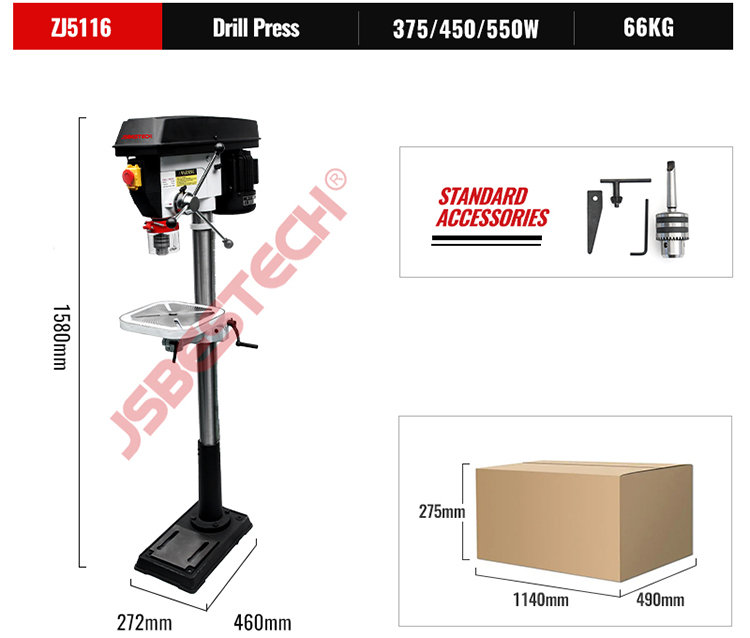

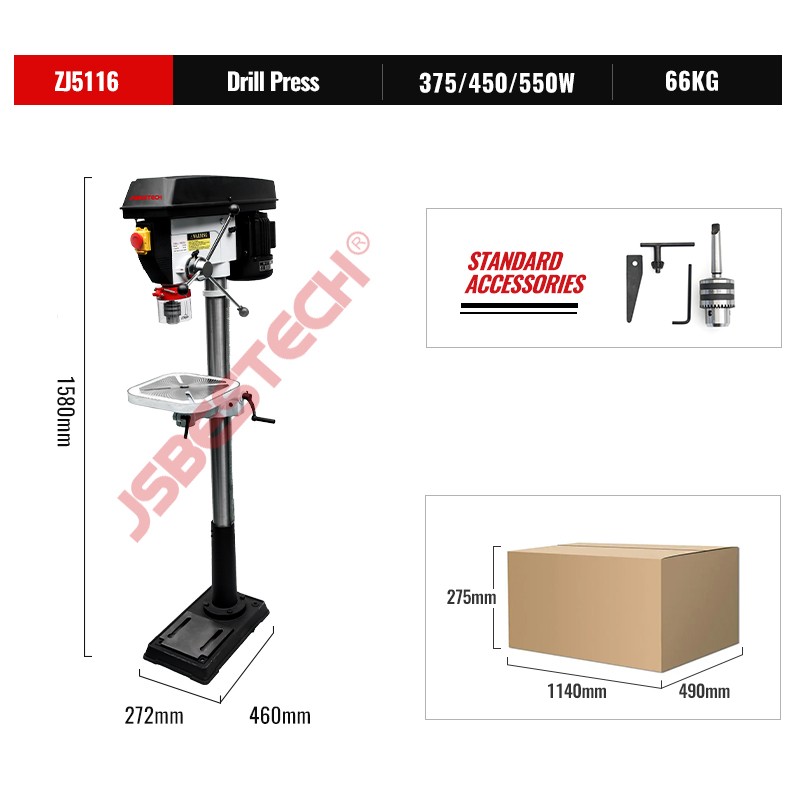

| Max Drilling Diameter | Ø16mm(5/8’’) |
| Motor Power | 375/450/550w |
| Chuck Capacity | 3~16mm |
| Spindle Travel | 85mm |
| Class Of Speed | 16 |
| Speed50/60Hz | 180~2770/220~3320 rpm |
| Spindle Taper | MT2 |
| Max distance from spindle axis to surface of column | 180mm |
| Max distance from spindle end to surface of table | 685mm |
| Max distance from spindle end to surface of base | 1175mm |
| Swing | 360mm |
| Table Size | 290×290mm |
| Base Size | 460×272mm |
| Column Diameter | Ø72mm |
| Height | 1600mm |
| Net Weight/ Gross Weight | 66.0/70.0kg |
| Packing Size | 1140×490×275mm |
